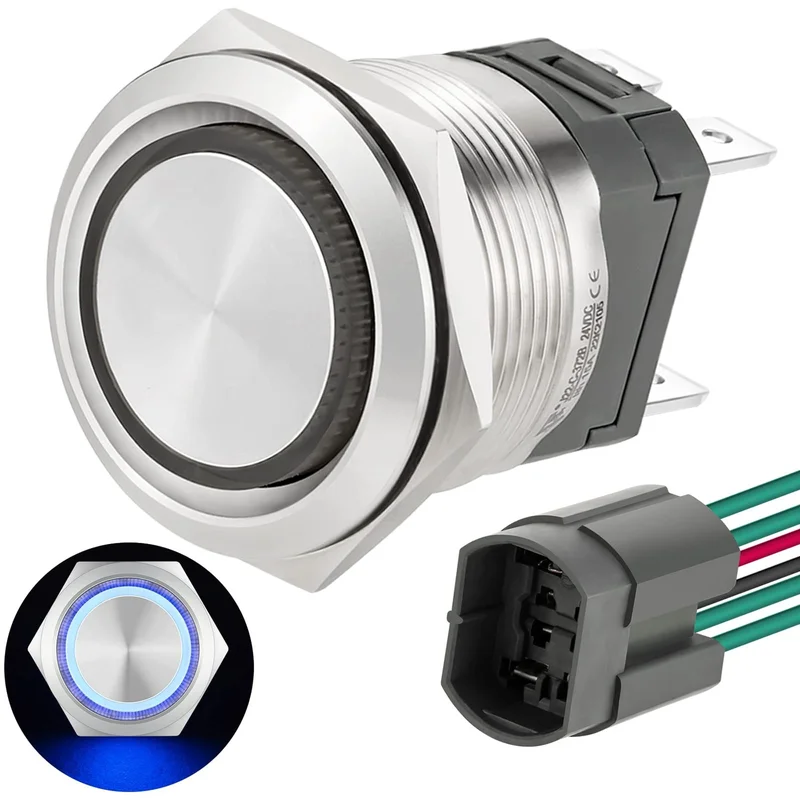

22mm Push Button Switch 15A 12V Momentary 2NO DPST Angel Eye LED Stainless Steel Round Self-Reset 7/8 with Wire Socket-Fast Shipping

Description

Our Push Button Switch CE quality metal 304 Stainless Steel material .IP67 waterproof protection can be used in wet or dusty Name: J22-C-272

Rated current (Resistive Load) 15A ; LED voltage: 12V DC/AC , Hole size required: 7/8”/22mm

Contact: 2NO.22mm Momentary Push Button Switch: Push and Hold-ON, Release-OFF.

4.8 mm wide X 0.8 mm thickness Terminal Pin for High Current Use; Mechanical Life: 1,000,000 switch and LED are separated, LED can be on all the time or only on when switch is on,depending on how you wire it

Package include : 1* 22mm Push Button Switch 15A , 1*Wire Socket Plug 1.5mm² .
