Description

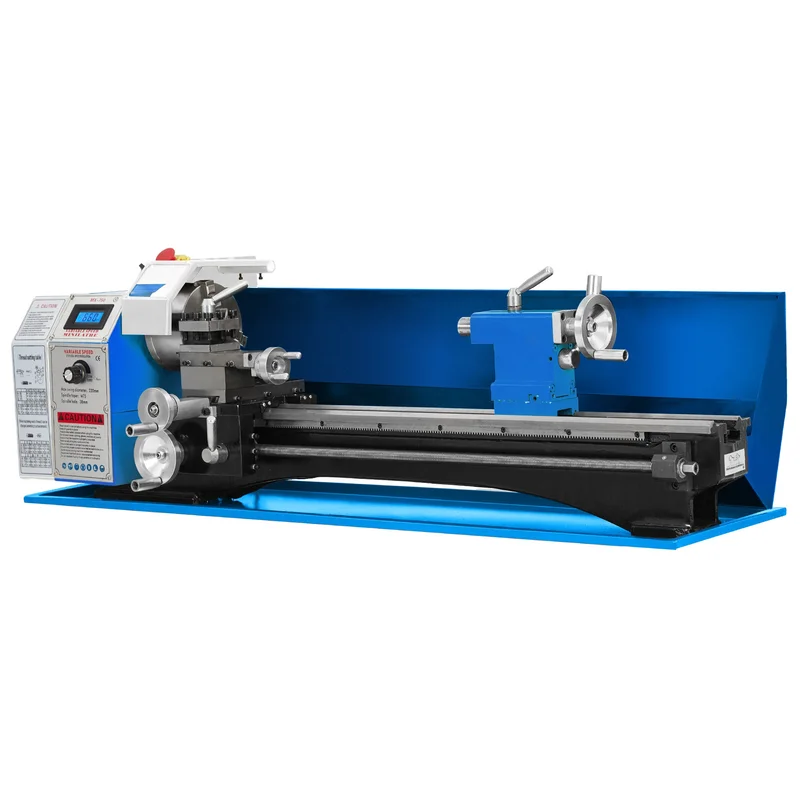

7″ X 14″ Variable-speed Metal Lathe

The 7 x 14 Inch Precision Mini Benchtop Lathe features a 3-jaw chuck, a MT3 spindle taper, a MT2 tailstock taper, a tool rest and a 3/4 HP motor, designed to perform various types of metal turning, simple to operate. Through high frequency quenching process and precision grinding of high-quality cast iron bed. 50-2500RPM spindle speed sub-level of two tranches spindle gear change speed control, continuously adjustable.

Heavy & Sturdy Machine

Features a 7 inch swing over bed, 13.78 inch distance between centers and 21mm spindle bore. Includes a thread range of 12-52 TPI, threading dial indicator and standard and metric handwheel graduations.

Infinitely Variable Speeds

Variable speed from 50-2500 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The feed speed can be adjusted according to the requirements of different workpieces

High Accuracy Chuck

3-jaw self-centering chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01mm.

Four-way Tool Post

T-slotted compound slide with four-way tool post, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever.

Professional Cross Slide

Designed with abrasive resistance, moving blades freely with feed rod. 16 TPI reversible lead screw. The v-slideways with distance between center: 350mm(13.78″). A lamp is for acurate operation in a dark environment.

Wide Applications

Suitable for processing jobs, like counter face turning, driling, threading and cutting jobs on materials made up of round bar. All accessories are well packed.

Key Features

• STURDY IRON CONSTRUCTION: Built with high-grade iron, ensures durability and wear-resistance, with 550W motor and full-length splashguard
• INFINITELY VARIABLE SPEED: Variable Speed range from 0 to 2500 RPM with forward and reverse functions
• ACCURATE 3-JAW CHUCK: Self-Centering Chuck with spindle accuracy within 0.01mm
• COMPACT AND POWERFUL: Perfect for small workshops with 9″x30″ working area and 550W motor
• USER-FRIENDLY DESIGN: Features digital display and professional compound rest for precise operations

Specifications
