Description

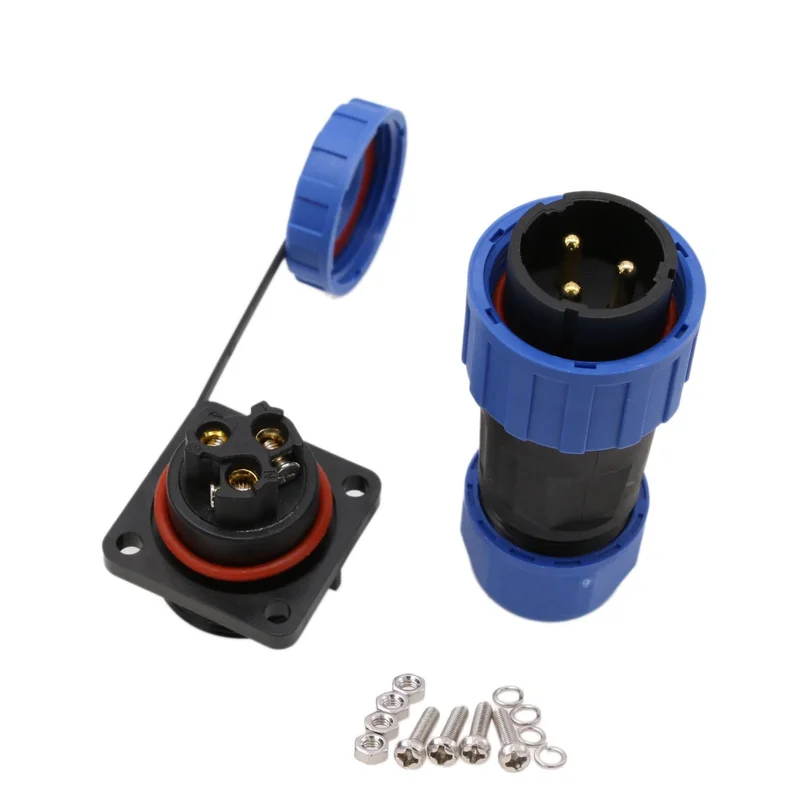

TY20 3 Pin Electrical Power Plug, Waterproof, Screw Ring, Screw Terminal Connector, Free Solderable, Bulkhead, Easy for Mounting Cable. No soldering. Insert the wires into the screw terminals to the stop and tighten them tightly.
Rated voltage/current AC 380V/25A, contact resistance 1m, insulation resistance 2000m. Suitable wire outer diameter range 6-12 mm, wire thickness 4 mm² or 12AWG-18AWG, contact diameter 2.8 mm
Cable plug and socket with 4 screws and waterproof cap. Panel cut-out 20.5 mm, thread M20 x 1.5
Features Waterproof IP68, threaded coupling and fixed locking, quick disconnect and connect. The contact pins of the connector are made of pure copper gold plated, which has strong conductivity, corrosion resistance and oxidation resistance
Protected against solids and liquids, provides a safe and reliable power connection in the harsh environment
