Description
ApplicationLinear actuators are widely used in many industries, such as electric power, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, construction, food and feed processing and so on.
ParameterInput Voltage :12V DC; Stroke Length:S=200mm(8inch);Min Installation Dimension:L=S+175mm;Max Installation Dimension:A= 2S+175mm;Max Push Load :6000N (1320lbs);Max Pull Load :4500N (990lbs);Speed :5~7mm/s;Operating frequency :Max 25%;Duty Cycle :25%;Protective Class :IP54;Operation Temperature:-26~85;Control Mode :Positive & Negative
Superb QualityMade of aluminum alloy,IP54 protection, is a power unit. Designed with IP54 level protection, with built-in limit switch. Plastic gear: smooth transmission, wear – resistant, high transmission torque. Pure copper core: low heating, long service life and more stable performance

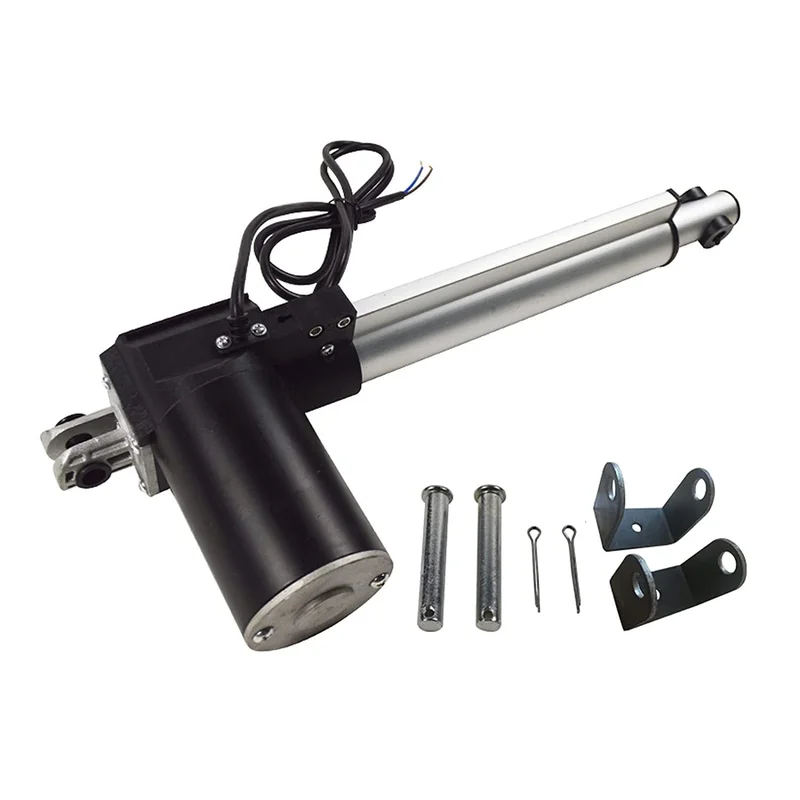

Easy to installEasy to install, all accessories included. We tested every linear actuator to confirm they are working well before our ship,if the linear actuator can’t working, pls check the wiring method or contact us directly.
Quiet WorkThis linear actuator works with Max.48db sound, quiet on working, not to create annoying sound. Reliable performance and stable running.
