Description

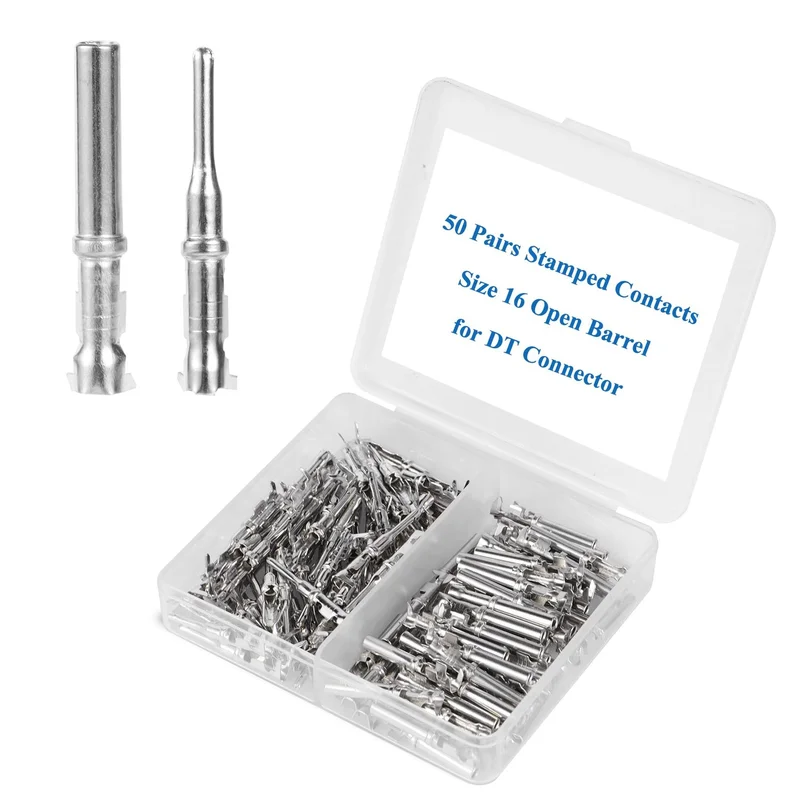

Packing list: 50 pairs open barrel terminal, stamped & formed style contacts [Male pins 50pcs, female sockets 50pcs], 1pcs plastic storage box.
DT common contacts Size 16, F-Crimp, made by pure copper, suitable for wire range 18-14AWG/ 0.82-2.08mm ².
Performance: Socket, Pin Diameter 1.59 mm [.063 in]. Terminal Transmits 0 24 A (Low Power).
Contact retention: contacts withstand a minimum load of: 25lbs (111 N) for size 16. Max rated amps at 125degree continous is 13amps.
DT series connectors are by far the most popular connector used in many automotive, RV, car lighting, motorcycle electrical wiring.
