Description

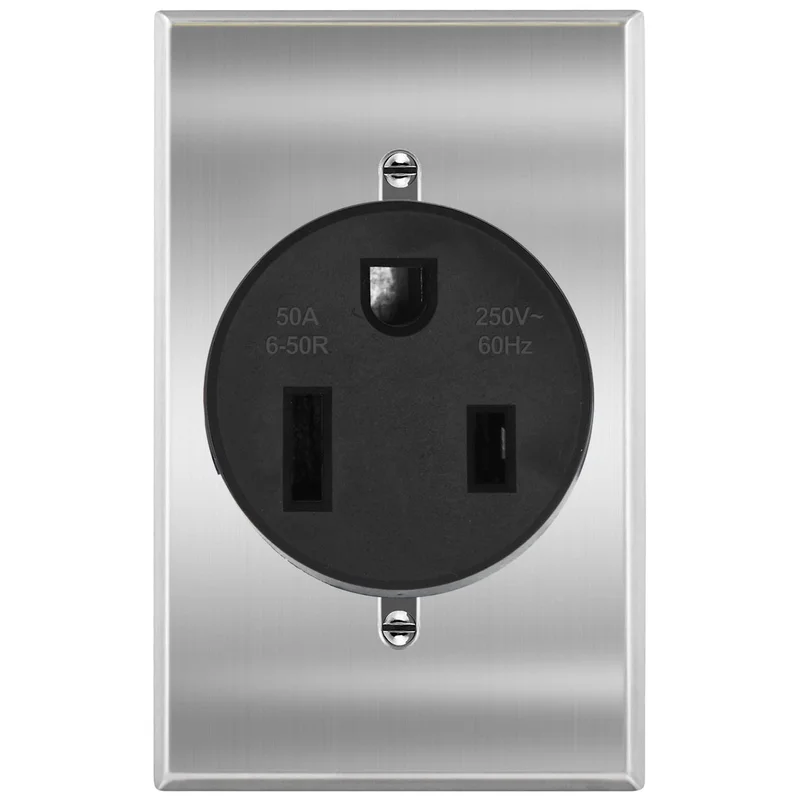

Flush Mount Power Outlet The flush mount receptacle features a heavy gauge galvanized steel mounting strap for corrosion resistance. It fits in BOTH single and 2-Gang box styles. Flush receptacles are completely ready-to-wire, which significantly shortens installation time.
Specifications 50 Amps 250V, NEMA 6-50R, 2 Pole 3 Wire, UL Listed. The flammability rating is V-2 per UL94. It is an industrial-grade and heavy-duty straight blade receptacle with grounding. It fits all wall plates with a 2.15″ diameter center hole.
Toughened Nylon Housing + Brass Contacts The durable nylon construction provides high impact resistance. The large brass contacts produce superior contact pressure, resulting in outstanding conductivity.
Easy Installation Terminals are marked for easy identification and fast wiring. The terminal accepts #10, #8 to #4 AWG. The receptacles will accept copper or aluminum wire.
Wide Application Widely used for heavy electrical dryers, ranges, (EV) Electric Vehicles, welders, outdoor electrical generators, and other heavy-duty and high-power appliances.
