Description
This product is designed to massively increase plane tracking signal strength (SNR) compared to competing products. Drastically outperforms all available, low-cost ADS-B amplifiers and filters!
SAWbird+ ADS-B increases SNR, and therefore signal range, by providing an industry lowest-in-class noise figure (0.9dB or lower) and substantial gain (34dB or higher) for BOTH ADS-B and UAT applications

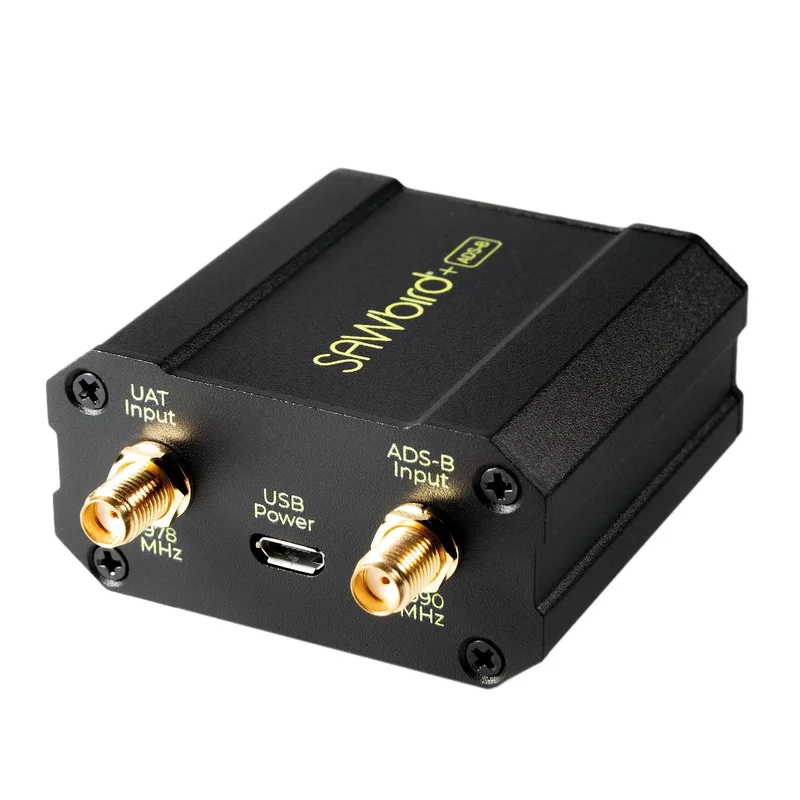

Your purchase includes a fully assembled SAWbird+ ADS-B module pre-installed into a beautiful black custom aluminum enclosure, two male to male SMA adapters, and a micro USB to DC barrel connector adapter cable
NOTE: Like any other amplifier, you MUST LOWER YOUR GAIN LEVELS AND/OR REMOVE OTHER AMPLIFIERS IN YOUR SIGNAL CHAIN to see the resulting reception increase! Otherwise, you WILL OVERLOAD YOUR RADIO, RESULTING IN REDUCED OR ZERO RECEPTION! When set up as intended, SAWbird+ ADS-B will greatly increase the performance of nearly every flight tracking setup
Both sides of the device offer a bias tee power option (3 to 5V DC and 140mA or higher current availability). Alternatively, a micro USB port is available to provide external power when bias tee power is unavailable or unsuitable
Exceptional out-of-band rejection levels of +85dB for cleaner signals
50 matched input/output for optimal signal transfer
Proudly made in North America, ensuring exceptional quality and reliability. Backed by a generous 2-year warranty for peace of mind
For more information review the product page or datasheet: .datasheets/100847
