Description
UsageOne side of TEG peltier(with word) is close to the heat dissipating surface (cold end), the non-word side is placed on the heat absorbing surface (hot end), the red line is connected to the positive pole, the black line is connected to the negative pole, and the power can be generated when there is a temperature difference.
High Reliability and Environmental FriendlySP1848-27145 thermoelectric peltier TEG module has no extra moving parts, easy to move, light weight, long reliability and no pollution, this thermoelectric generator has high-temperature power generation components. The heating side is empty.
The Principle of Heat GenerationWhen the thermal energy is discharged from the low temperature side through the thermoelectric power generation piece, part of the thermal energy flowing into the device does not exotherm, and becomes electric energy in the device, and outputs DC voltage and current.

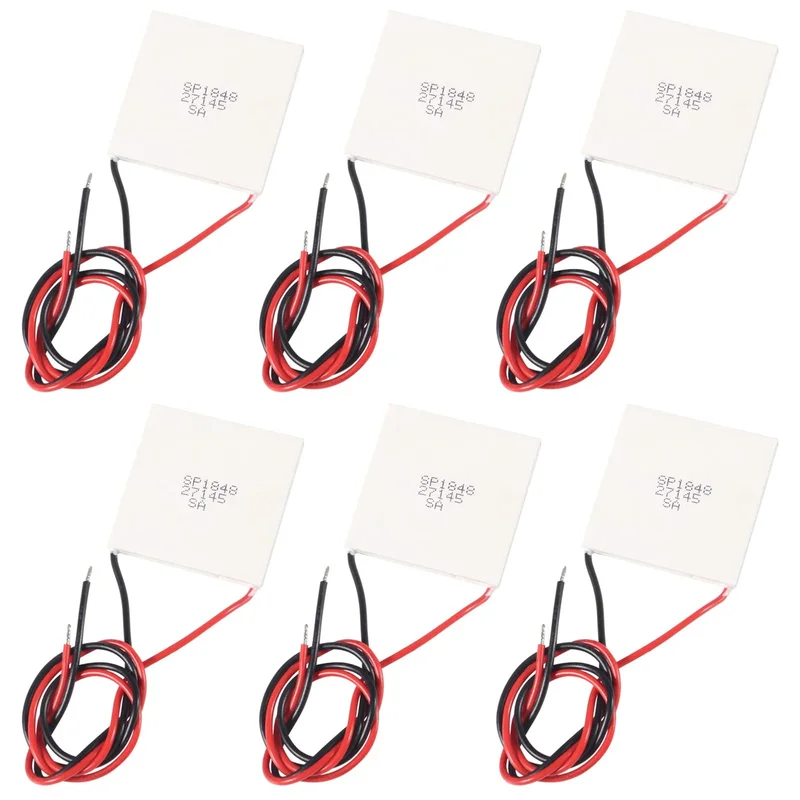

ParameterModel: SP1848-27145, Color: White, Lead Length: about 300mm, Size: 4x4x0.34 cm / 1.57×1.57×0.13 inch, Working Environment: -60~125, Temperature electromotive force (a):> 190x uV/ , Conductivity: 850~1250 –1, Thermal conductivity (K): 15~16×10-3-W/ cm.
100% Satisfaction GuaranteeThe above values are for reference only. The wiring and booster board in actual use will have current you have any questions or dissatisfaction with the product, please feel free to contact us, we will provide you with the best solution.
